Articulating Cab Crane Training Program Breakdown

Comprehensive Operator Certification & Safety Training – Available Nationwide

I. Introduction to Articulating Cab Crane Operations

Overview:

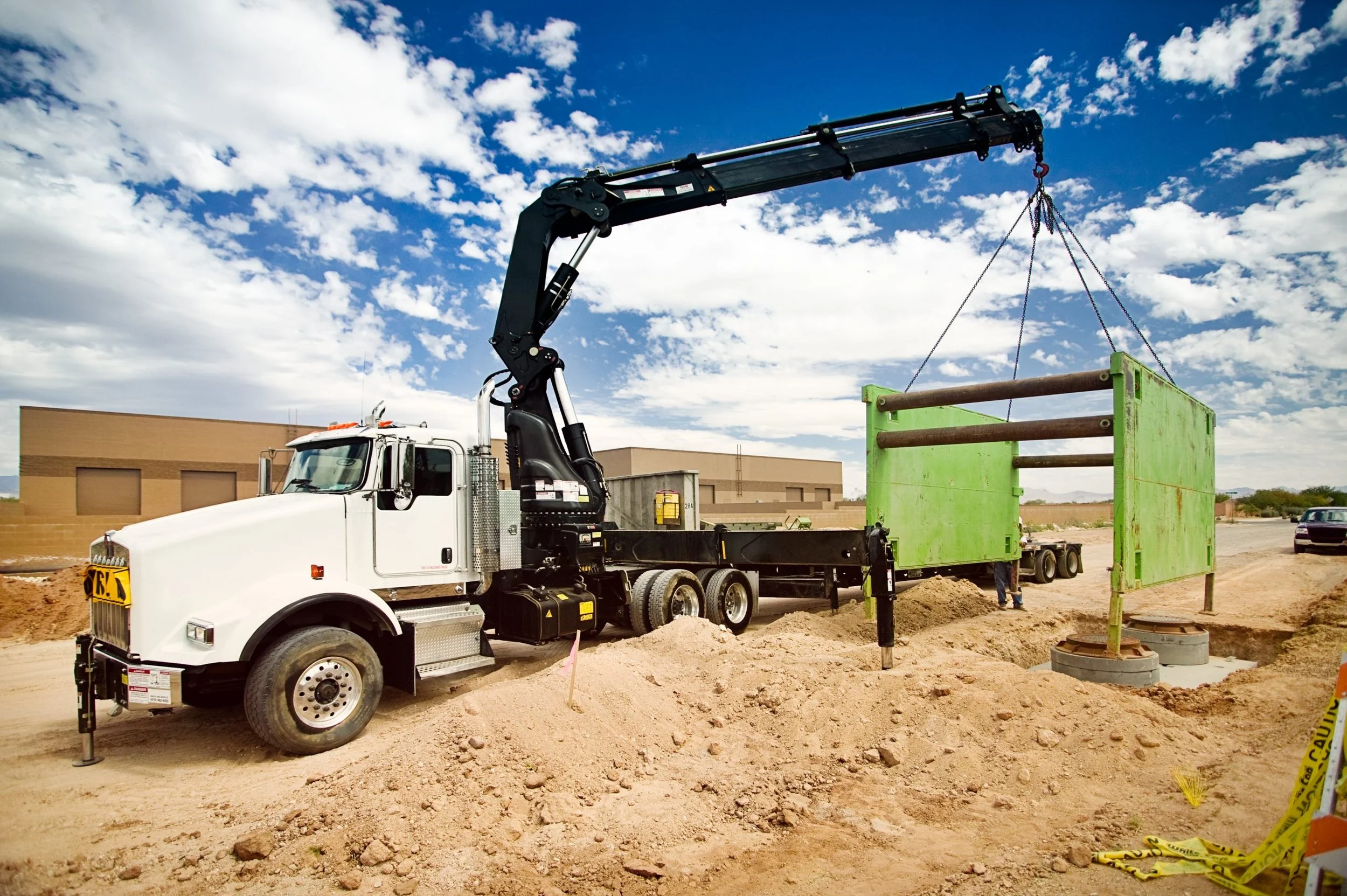

The Articulating Cab Crane, often referred to as a knuckle boom crane, is a versatile lifting machine primarily used in construction, logistics, and material handling. It features multiple articulated joints (knuckles) that allow for compact storage and a flexible range of movement, making it ideal for urban job sites and delivery operations.

Key Points:

• Compact design for tight spaces and urban settings

• Mounted on trucks or trailers for transport and quick deployment

• Multi-joint articulation provides enhanced maneuverability

• Often used for loading/unloading heavy materials in restricted areas

Importance of Safety:
Improper operation can lead to tip-overs, boom collapse, or severe injury. Operators must understand the crane’s center of gravity, load chart limits, and articulation range to ensure safe operations.

II. Legal and Safety Regulations

Training emphasizes compliance with OSHA, ANSI, and local regulations. Operators must be aware of:

• OSHA 29 CFR 1926 Subpart CC – Cranes and Derricks in Construction

• ANSI/ASME B30.22 – Articulating Boom Cranes Safety Standard

• DOT Regulations for transport and on-road travel with mounted cranes

• Load chart comprehension and derating factors for non-level ground or extended booms

Key Learning Objectives:

• Understanding regulatory requirements for crane operation

• Site-specific safety plans and job hazard assessments

• Compliance with signal person and rigging standards

III. Crane Components and Terminology

Operators are introduced to the mechanical and hydraulic systems of articulating cranes. Critical components include:

• Base and Turntable: Supports rotation and provides stability

• Primary and Secondary Booms: Extend and articulate for variable reach

• Knuckle Joints: Allow multiple points of movement

• Hydraulic Cylinders & Hoses: Control articulation and extension

• Outriggers & Stabilizers: Provide support to prevent tipping

• Load Moment Indicator (LMI) & Safety Devices: Monitor load capacity and safe operation

Terminology:

• Slewing – Rotational movement of the crane

• Articulation – Movement of the knuckle joints

• Load Radius – Distance from the crane’s center of rotation to the load

IV. Pre-Operational Procedures

Before each lift, operators must conduct a comprehensive pre-use inspection, which includes:

• Visual Inspection: Hydraulic leaks, cracked welds, worn hoses

• Functional Checks: Boom articulation, rotation, and load moment indicator testing

• Outrigger Deployment: Ensure solid ground or cribbing support

• Load Chart Review: Confirm safe lifting capacity based on boom length and angle

• Jobsite Hazards Assessment: Identify overhead powerlines, uneven ground, or obstacles

Daily Checklist Includes:

1. Hydraulic oil levels and hose integrity

2. Boom, knuckles, and rotation systems

3. Safety devices and alarms operational

4. Tires, brakes, and truck chassis condition (if truck-mounted)

V. Operational Procedures

This module focuses on hands-on crane operation and safe lifting practices:

• Basic Controls: Rotation, boom extension, articulation, and load handling

• Lifting Techniques: Smooth starts and stops, maintaining stability

• Load Handling: Using slings, hooks, and specialized attachments

• Multi-Joint Coordination: Maneuvering the crane in confined areas

• Awareness of Swing Radius: Preventing collisions with personnel or structures

Load Dynamics:
Operators learn how load weight, boom angle, and extension affect crane stability and capacity.

VI. Rigging and Signaling

Communication is vital on all lifting operations. This section covers:

• Standard Hand Signals (ANSI B30.5)

• Two-Way Radio Protocols for remote operations

• Rigger Coordination:

  • Choosing correct slings, shackles, and hooks

  • Calculating sling angles and load weight distribution

  • Avoiding side loading or shock loading

VII. Emergency Procedures

Operators must be prepared to respond to emergencies effectively:

• Power Loss or Hydraulic Failure: Lowering loads safely

• Boom Collapse or Overload Alarm: Evacuation and lockout procedures

• Weather Hazards: High winds or icy conditions affecting articulation

• Contact with Power Lines: OSHA minimum approach distances and rescue protocol

VIII. Maintenance and Troubleshooting

Routine maintenance extends crane life and prevents breakdowns:

• Daily & Weekly Maintenance: Lubrication, hydraulic checks, cleaning sensors

• Common Issues:

  • Hydraulic leaks or air in the system

  • Faulty load indicators or sensors

  • Wear in knuckle joints and pivot points

• Recordkeeping: Logging inspections and service for OSHA compliance

IX. Hands-On Practical Training

Field exercises ensure operators are proficient and confident:

1. Pre-Operation Inspection Drills

2. Setup and Stabilization with Outriggers

3. Boom Articulation and Load Handling in Confined Space

4. Use of Signal Person for Blind Lifts

5. Simulated Emergency Scenario Response

X. Certification and Evaluation

Participants complete:

• Written Examination – Covering safety regulations, load charts, and operational theory

• Practical Exam – Demonstrating crane setup, control, and safe lifting procedures

Upon passing, operators receive:

• Certificate of Completion (3P Safety)

• Operator Qualification Card (Optional NCCCO or OSHA compliance certification)
